Home > AC DC Power Adapter >

dc 9v 9w power adapter

Product Categories

BTB TECHNOLOGY CO.LTD

Contact Now

Name: dc 9v 9w power adapter
Brand: BTB

Brand Name : BTB

Model Number : BTB-S10-5

Certification : CE FCC UL GS SAA PSE Rohs CCC KC

Place of Origin : Shenzhen China

MOQ : 100pcs

Price : 0.00

Payment Terms : T/T L/C WESTER UNIN PAYPAL

Supply Ability : 10000000pcs

Delivery Time : 5-7days

Packaging Details : Paper box

Contact Now

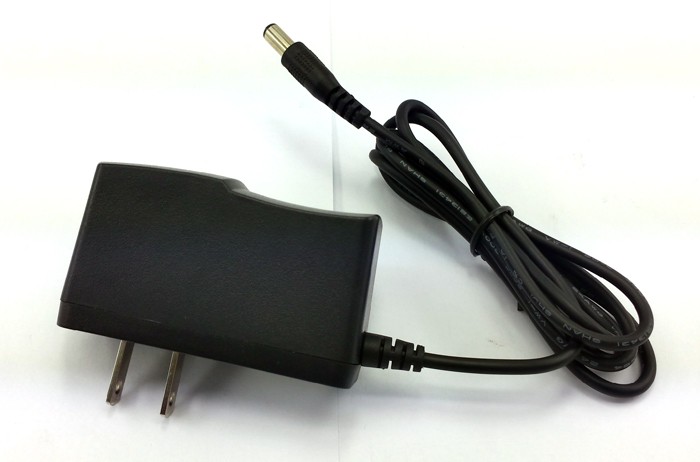

dc 9v 9w power adapter

Usage	* LED strip ,LED light ,LED table lamp. * Router,amplifier,CCTV camera, * Home appliances ,setup box ,speaker, * Audio & Video equipments, * Wireless communication electronics . * Medical equipments
DC Output Voltage	9V± 5%
DC Output Current	1000mA
DC Output Power	9W
Working efficency	78%
Adapter Size	722831mm (L/W/H)
Efficiency	level 5
Warranty	2years
Certificates approved	TUV CB CE GS ROHS UL/CUL FCC IECS SAA C-tick
Input Rated Voltage	86Vac~264Vac
Input Frequency Range	47Hz~63Hz
Safety protection	output voltage protection (120%-150% rated output current)
	output current protection (150%-180% rated output current)
	short current protection
Ripple and Noise	less than 60Mv at full road with 20MHz bandwidth
DC connector	5.52.111mm (optional)
DC cable	1.5m 2464UL 20AWG cable (optional)
Operating Temperature	0°C - +55°C
Storage Temperature	-20°C - +85°C
Safety Standard	EN60950 EN60601 ESD (EN61000 3-3)
	CAS (60950 ITE/TE,EN60601 Medical) FCC Part 15 subpart B Class 2
	AN/NZS CISPR 22:2006
Turn On Delay Time	less than 3S (AC:110V and full load)
Dielectric Voltage	A IEC320 three pin input---output(FG)3000Vac one minute
Input Current	less than 0.5A
Input Inrush Current	less than 50A
Leakage Current	less than 5mA
Standby power	less than 0.1w
Net Weight	116g/pcs
Gross Weight	13.2kg/carton
Carton Box Size	393129cm

dc 9v 9w power adapter

Welcome to OEM/ODM

Free sample

Sample time : 3-5days

Delivery time:7-10days

Trade terms: FOB shenzhen

Payment : T/T ,L/C,PAYPAL ,Western Union

All product warranty 3 years(One years damage manufacture one to one exchange.)

Printing you LOGO and stick you modle also ok .

Credit is the basis , Quality is the first

Power adapter ,Charger ,Power supply Manufacture

Skype:beryl--qin

What's app: 86 13412619588

QQ:1767294269

Wechat: beryl18

www.btbadapter.com

dc 9v 9w power adapter Images
